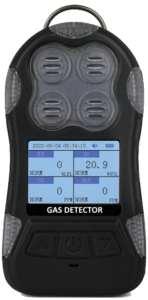

AI-4AS portable multi-gas detector could detect combustible gas O2 and other two types toxic gases continuously and simultaneously.
AI-4AS portable multi-gas detector could detect combustible gas O2 and other two types toxic gases continuously and simultaneously.
AI-4AS portable multi-gas detector could detect combustible gas O2 and other two types toxic gases continuously and simultaneously.
| Operating & Storage Environment | Temperature: -20℃~55℃ (-4F~122F)
Humidity: 5%-95% (Relative humidity non-condensing) Pressure: 95~110kPa |
| Sampling method | Diffusion type |
| Detecting Range | CO: 0~1000ppm
H2S:0~100 PPM O2: 0~30%vol Combustible Explosive Gas (Ex / LEL / CH4): 0~100%LEL |
| Sensor | O2 /H2S / CO: plug-in electrochemical sensor
Combustible gas (LEL): plug-in catalytic combustion sensor |
| Alarm Type | low & high alarm, multiple gas alarm, sensor alarm, battery low alarm, prompt tone, automatic shutdown alarm |
| Resolution | 0.1%VOL (O2), 1ppm (CO), 0.1ppm (H2S), 1%LEL (EX) |
| Accuracy | 3% F.S |
| Response time | 10s |
| Repeatability | 1% |
| Zero drift | 1% |
| Display | Alphanumeric large LCD displays the real time gas concentration and alarm stage |
| Backlight | Automatically activated when working in poor lighting environment or the alarm sounding or the button is knobbed down. |
| Self-checking Function | Self-checking Battery power, display, sensor, hardware failure |
| Explosion-proof | EXiaIICT4 |
| Protection grade | IP65 |
| Power Supply | Rechargeable lithium battery |
| Weight | 400g |
| Dimensions | 130mm*67mm*30mm |
